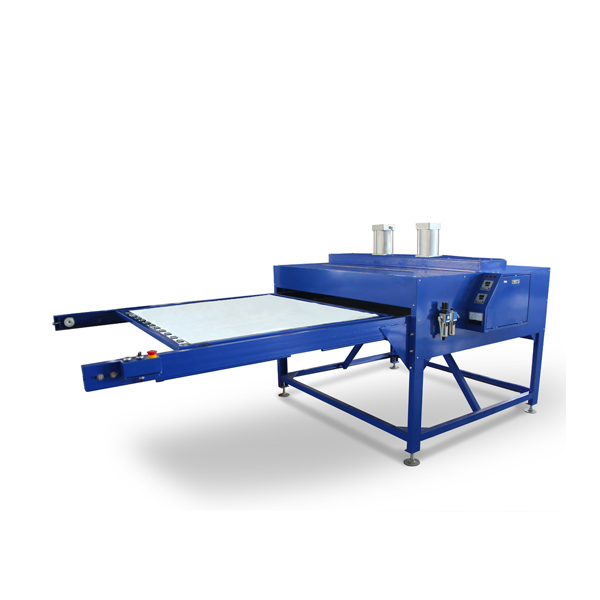

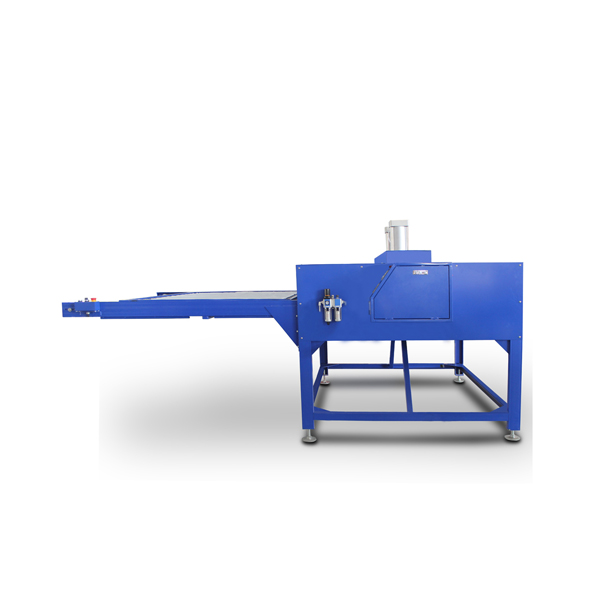

Pneumatic Double Layer Heat Transfer Machine for Garment D2

Short Description:

this machine is designed for heat transfer artwork onto flat item and garments A heat press is a machine engineered to imprint a design or graphic on a substrate, such as a t-shirt, with the application of heat and pressure for a preset period of time. While heat presses are often used to apply designs to fabrics, specially designed presses can also be used to imprint designs on mugs, plates, jigsaw puzzles, caps, and other products.  Description: Thicker Element Heating Plates with Protecti...


  • Brand: ColorKing
  • Voltage: 110v / 220v
  • Plug: US UK Euro AU Type
  • Color: Silver Black Customized
  • Packaging: Foam+Carton / wooden case
  • Warranty: 12 Months, Life-time Support
  • Place of Origin: Fuzhou, China
  • Supply Ability: 5000Sets/Month
  • MOQ: 1 Set
  • OVERVIEW

    SPECIFICATION

    VIDEO

    Product Tags

    this machine is designed for heat transfer artwork onto flat item and garments
    A heat press is a machine engineered to imprint a design or graphic on a substrate, such as a t-shirt, with the application of heat and pressure for a preset period of time. While heat presses are often used to apply designs to fabrics, specially designed presses can also be used to imprint designs on mugs, plates, jigsaw puzzles, caps, and other products.

    Description:

    • Thicker Element Heating Plates with Protective Steel Cover for Heat Insulation
    • Touch Screen Controllers (Set by degree Celsius,or degree Fahrenheit)
    • Pressure adjustable according to different imprint item
    • Flexible drawer system easy operation
    • Slide out hand protection
    • Single heating platen or Double platen is optional

     Features:

    • Slide Out Easy to Put onto garments
    • One side two layer operation for everyday-use and long production runs.
    • Emergency Stop Buttons
    • Digitally Touch Screen controlled time and temperature.
    • Heating elements - Thicker heating plate with more even temp
    • Teflon coated element - The surface is non-stick, preventing scorching of transfers.
    • Strong metal structure - Machine is heavy-duty, commercial-grade, and super stable.
    • Unique Design - Easy operation to press down for everyday-use and long production runs.
    • Micro processor precision heat and temperature gauge.
    • Electronic time control indicates completion of heat press cycle.
    • Heavy Duty: Machine body made by iron and solid backbone made by stainless steel and iron.

  • Previous:
  • Next:

  • Voltage: 110 V /220 V / 380v
    Power: 9KW / 12KW / 14KW
    Time range: 0 s-999s
    Max temp: 0-250 Celsius degree
    Printing area: 80x100cm 100x120cm 100x150cm (OEM/ODM is accepted)
    Gross Weight: 500~950 KG
    Packing Size: 137x175x191cm / 218x175x191cm
    Feature: Large Pressure Single Heating Platen(Double Heating Platen is Optional)

    Pneumatic Auto

    Digital controller Panel
